JDM Honda CR-V K20A Engine

Description

Estimated donor mileage: approximately 53,000 miles (rounded from the mileage figure in existing description; not independently verified for this unit).

Compression Tested: This engine was individually compression tested.

 JDM HONDA K20A Engine For Sale

JDM Honda CR-V K20A Engine For Sale. The K20 motor is a four-cylinder, four-stroke engine that was first released in 2001 in the Honda Stream. What you get with this K20A engine for sale, is a clean JDM Honda CR-V K20A DOHC I-VTec replacement/swap engine, ideal for any 2002 – 2006 Honda CR-V swap, or a seamless 2003 – 2007 RSX, replacement project.

Parts Included In the JDM Unit

• AC Compressor
• Alternator
• Head and Block
• Intake Manifold
• Exhaust Manifold
• Timing Components
• Throttle Body
• Sensors

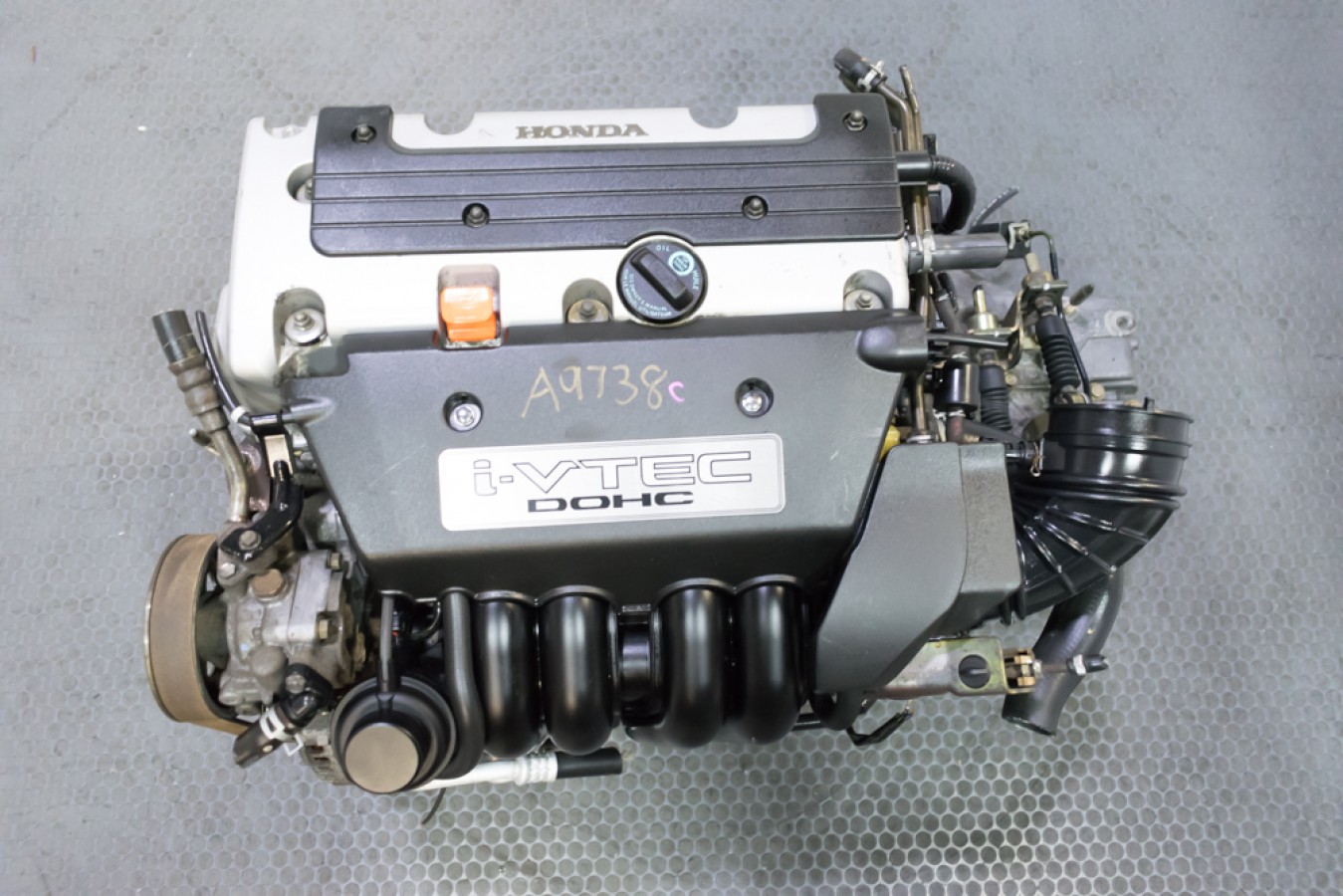

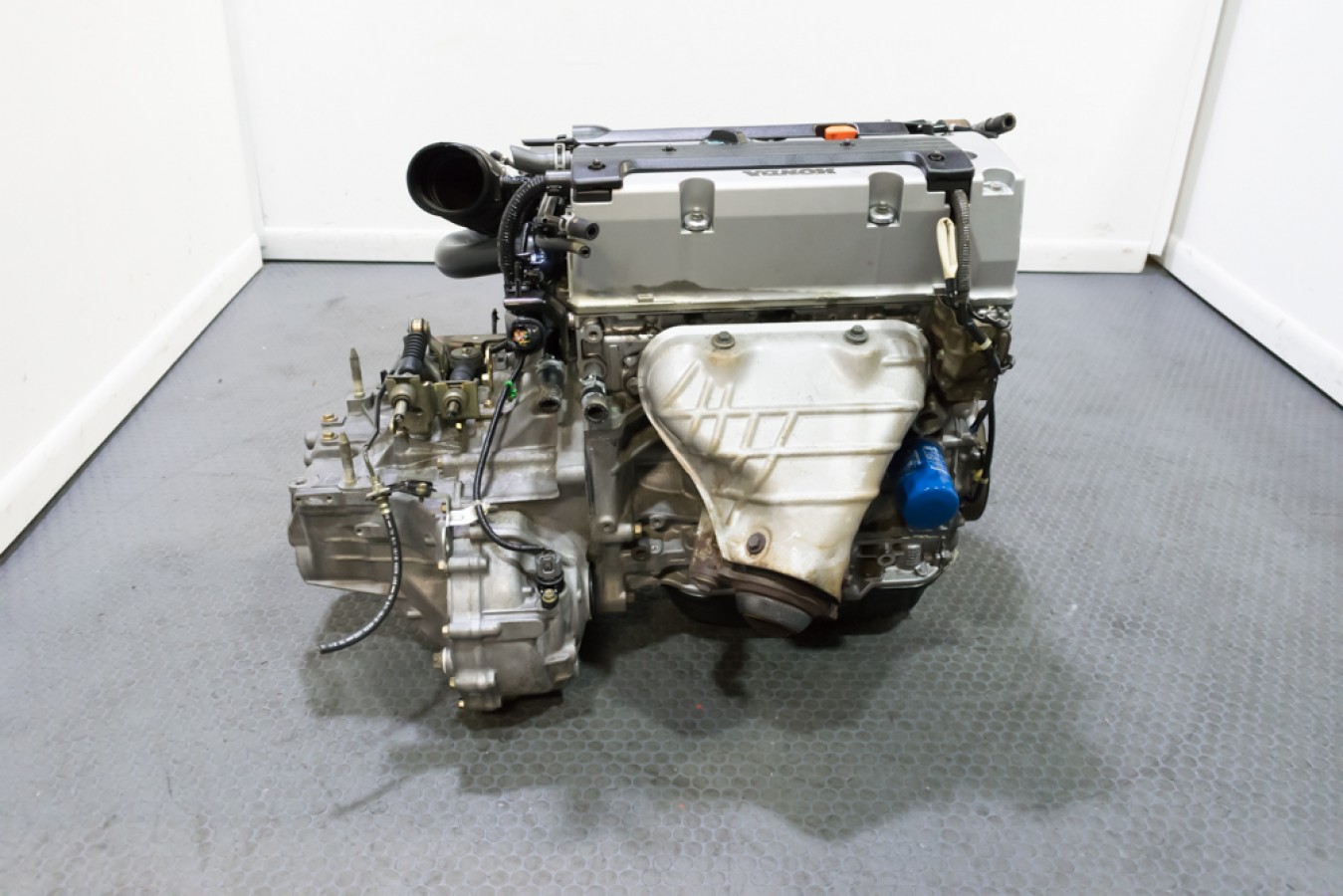

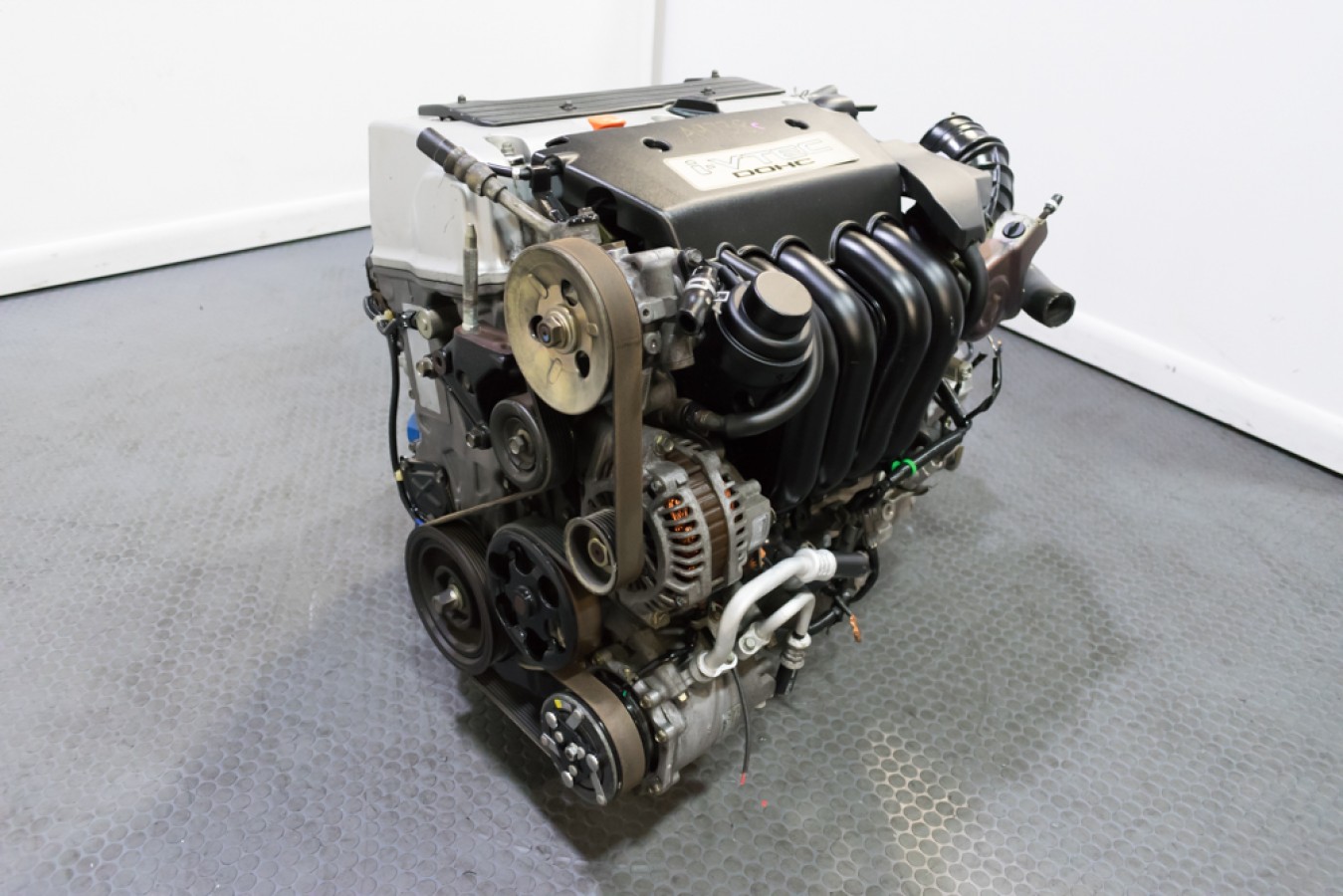

*What you see in the image is exactly what you get!

Honda K20A/K20C Engine Specs

Manufacturer	Honda Motor Company
	Honda K20A
Initial Production	2001-present
Cylinder block alloy	Aluminum
Configuration	Inline-4
Valvetrain	DOHC 4 valves per cylinder
Piston stroke, mm (inch)	86 (3.39)
Cylinder bore, mm (inch)	86 (3.39)
Compression ratio	9.7 9.8 10.0 10.8 11.0 11.5 11.7
Displacement	1996 cc (121.8 cu in)
Power output	110 kW (150 HP) at 6,500 rpm 116 kW (155 HP) at 6,500 rpm 118 kW (158 HP) at 6,500 rpm 120 kW (160 HP) at 6,500 rpm 147 kW (197 HP) at 7,800 rpm 150 kW (200 HP) at 7,400 rpm 150 kW (201 HP) at 7,800 rpm 160 kW (210 HP) at 7,800 rpm 158 kW (212 HP) at 8,000 rpm 162 kW (217 HP) at 8,000 rpm 165 kW (221 HP) at 8,000 rpm 188 kW (252 HP) at 6,500 rpm 203 kW (272 HP) at 6,500 rpm 228 kW (306 HP) at 6,500 rpm
Torque output	190 Nm (140 lb·ft) at 4,500 rpm 177 Nm (131 lb·ft) at 5,000 rpm 190 Nm (140 lb·ft) at 4,000 rpm 179 Nm (132 lb·ft) at 4,000 rpm 188 Nm (139 lb·ft) at 6,200 rpm 193 Nm (142 lb·ft) at 6,000 rpm 193 Nm (142 lb·ft) at 6,800 rpm 194 Nm (143 lb·ft) at 6,200 rpm 202 Nm (149 lb·ft) at 7,000 rpm 206 Nm (152 lb·ft) at 7,000 rpm 215 Nm (159 lb·ft) at 6,100 rpm 370 Nm (273 lb·ft) at 1,500-4,000 rpm 370 Nm (273 lb·ft) at 1,500-4,000 rpm 400 Nm (295 lb·ft) at 2,500-4,500 rpm
Redline	6,800 7,000 (K20C Type R) 7,900 (RSX Type S) 8,000 (Civic Si/Type R, CSX Type S) 8,400 (Integra Type R)
HP per liter	75 78 79 80 99 100 101 105 106 109 111 126 136 153
Fuel type	Gasoline
Weight, kg (lbs)	184 (405)
Fuel consumption, L/100 km (mpg) –> City –> Highway –> Combined	Honda CR-V 11.5 (20.5) 7.6 (31) 9.0 (26)
Turbocharger	Naturally aspirated MHI TD03 MHI TD04
Oil consumption, L/1000 km (qt. per miles)	up to 1.0 (1 qt. per 600 miles)
Recommended engine oil	0W-20 0W-30 0W-40 5W-20 5W-30 5W-40 10W-30 10W-40 15W-40 0W-20 (K20C) 5W-20 (K20Z) 5W-30 (K20Z) 5W-40 (K20Z) 10W-40 (K20Z)
Engine oil capacity, L (qt.)	4.2 (4.4) – K20A
Oil change interval, km (miles)	5,000-10,000 (3,000-6,000)
Normal engine operating temperature, °C (F)	–
Engine lifespan, km (miles) -Official information -Real	– 300,000+ (180,000)
Tuning, HP -Max HP -No life span loss	300+ –
The engine is installed in	Honda Accord Honda Civic Honda CRV Honda Stream Honda Integra/Acura RSX Acura TLX Honda Edix Honda Stepwgn Acura CSX
