BluePrint BP350CTF 350 Cruiser Crate Engine, Base Dressed, EFI
$4,346.37

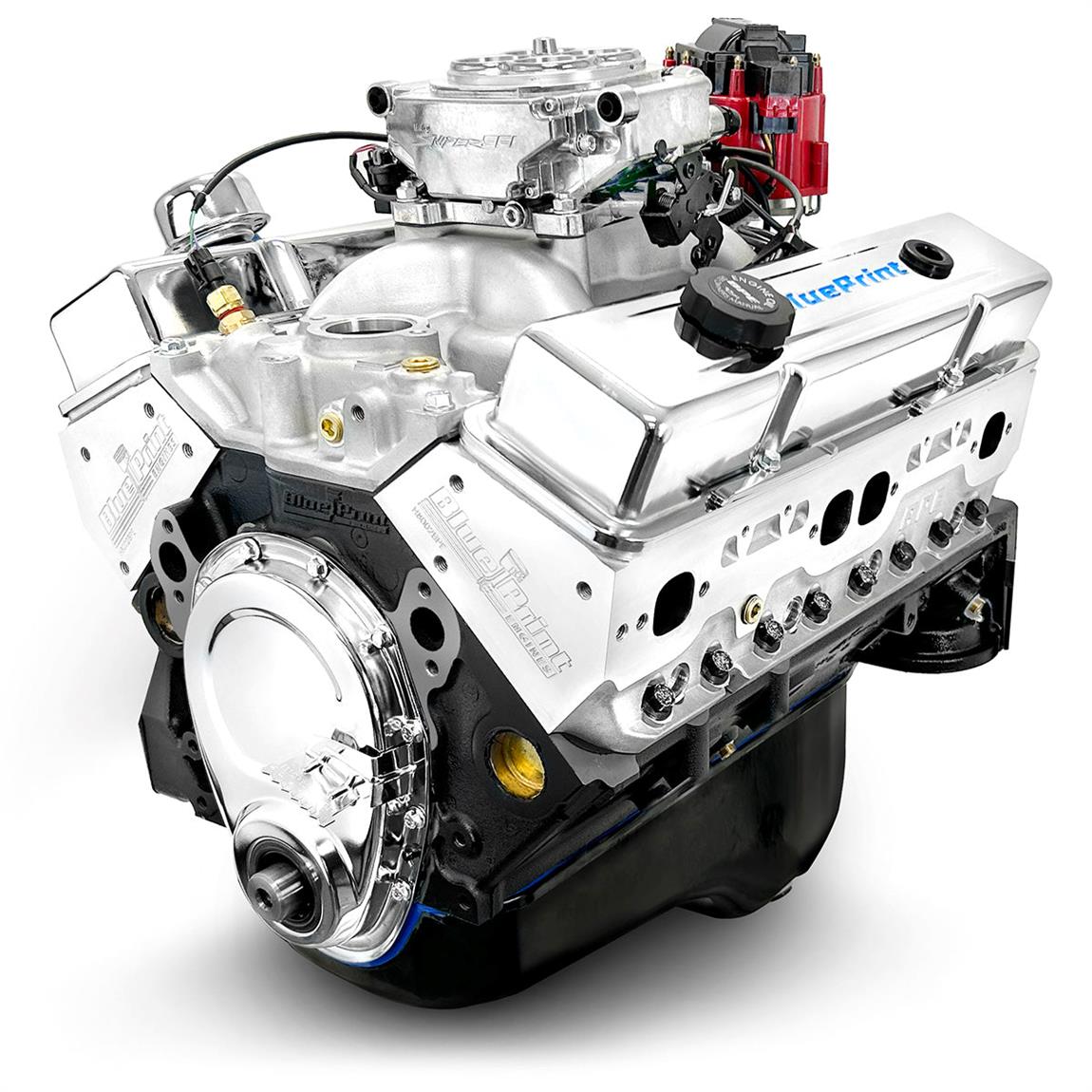

BluePrint Engines New Block Casting 350 CI Cruiser Crate Engine | Dyno Tested Small Block GM Style | Fuel Injection Base Dressed Longblock | HP and torque : 341 HP / 371 FT LBS, Compression Ratio: 9:2:1 | Aluminum Heads, Hydraulic Roller Cam, Cast Iron Crank, and Hypereutectic Pistons
Payment plans: Payment plans may be available for eligible orders. Contact us to discuss options.
Free shipping on orders over $4,000!
Description
Mileage status: Donor-vehicle odometer mileage is not provided for this crate-engine assembly. Any break-in or oil-change distance below is post-installation guidance, not prior mileage.
BluePrint Engines New Block Casting 350 CI Cruiser Crate Engine Dyno Tested Small Block GM Style Fuel Injection Base Dressed Longblock HP and torque : 341 HP / 371 FT LBS, Compression Ratio: 9:2:1 Aluminum Heads, Hydraulic Roller Cam, Cast Iron Crank, and Hypereutectic Pistons BLOCK:NEW BluePrint Cast Iron BlockManufactured and Machined in the USA!4-Bolt Main4.000″ Bore1-Piece Rear Main SealMech fuel pump provision: YesPassenger Side DipstickDrilled and tapped for clutch linkage ROTATING ASSEMBLY:Cast Iron Crankshaft3.480″ StrokeForged 5.700″ connecting rodsHypereutectic pistonsInternal Front/ External Rear engine balance CYLINDER HEADS:BluePrint Aluminum Cylinder Heads – H8002K64cc chamber2.02″ intake/1.60″ exhaust valves195cc intake/75cc exhaust runners CAM SPECS:Cam Type: Roller.477 Intake .471 Exhaust202 Intake / 212 Exhaust duration@ .050 – 115 degree lobe separation IGNITION TIMING:32 Degrees Total at 3500 RPM ALSO INCLUDES:Valve coversOil panTiming coverAluminum intakeHEI distributorEFI systemDyno test results shipped with engine
Highlights
- BluePrint Engines New Block Casting 350 CI Cruiser Crate Engine
- Dyno Tested Small Block GM Style
- Fuel Injection Base Dressed Longblock
- HP and torque : 341 HP / 371 FT LBS, Compression Ratio: 9:2:1
- Aluminum Heads, Hydraulic Roller Cam, Cast Iron Crank, and Hypereutectic Pistons
Specifications
- Crate Engine Type: Connect and Cruise
- Engine Displacement: 350 cu. in.
- Horsepower: 341 horsepower
- Compression Ratio: 9.2:1
- Torque: 371 ft./lbs.
- Camshaft Type: Hydraulic Roller
- Cylinder Head Material: Aluminum
- Piston Material: Hypereutectic Aluminum
- Crankshaft Material: Cast Iron
- Combustion Chamber Volume: 64cc
- Camshaft Duration (.050 in): 202° intake / 212° exhaust
- Camshaft Lift (in): .477 intake / .471 exhaust
- Bore x Stroke (in): 4.000″ x 3.480″
- Carburetor Included: Yes
- Intake Manifold Included: Yes
- Distributor Included: Yes
- Valve Covers Included: Yes
- Assembled: Yes
- Engine Balance: Internal
- Cylinder Heads Included: Yes
- Rear Main Seal Style: 1-piece
- Throttle Body Included: No
- Oil Pan Included: Yes
- Timing Cover Included: Yes
- Water Pump Included: No
- Harmonic Balancer Included: Yes
- Flexplate Included: No
- Flywheel Included: No
- Air Cleaner Included: No
- Spark Plugs Included: Yes
- Spark Plug Wires Included: Yes
- Computer Included: No
- Wiring Harness Included: No
- Cylinder Head Style: Assembled
- Intake Valves Included: Yes
- Exhaust Valves Included: Yes
- Valve Spring Included: Yes
- Retainers Included: Yes
- Head Gaskets Included: Yes
- Intake Gaskets Included: Yes
- Camshaft Included: Yes
- MFG. Part #: BP350CTF
- GTIN Code: 887753800732
- Sold in Quantity: Each
- Brand: BluePrint Engines
Emissions Notice
Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine
